The copperwire we used was 0.13 mm thick. Soldering iron tip 0.4 mm. We also used surgical tape for securing isolation and fixation.
holes masked for drilling. |
middle hole was drilled |
bend copperwire middle was soldered to processor |
view from other angle |

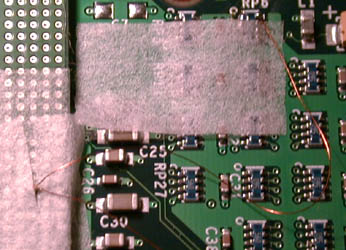

taped soldering and connection to RP6 |
back side and ugly soldering to connection pad |
back side from other angle |
top side again from directly above |
back side with cooling attached and everything secured with tape. |
